MIG 130 HTP AMERICA usaweld.com
Product # 60130
Download ManualIncludes:
7’ MIG Gun, 5’ Ground Clamp, Flowmeter, Gas Hose Adapter, 1 Roll of .030” Mild Steel Wire, 1 Roll of .035” Flux-Cored Wire, Extra Contact Tips
Does Not Include:
Welding Cart, Gas Bottle

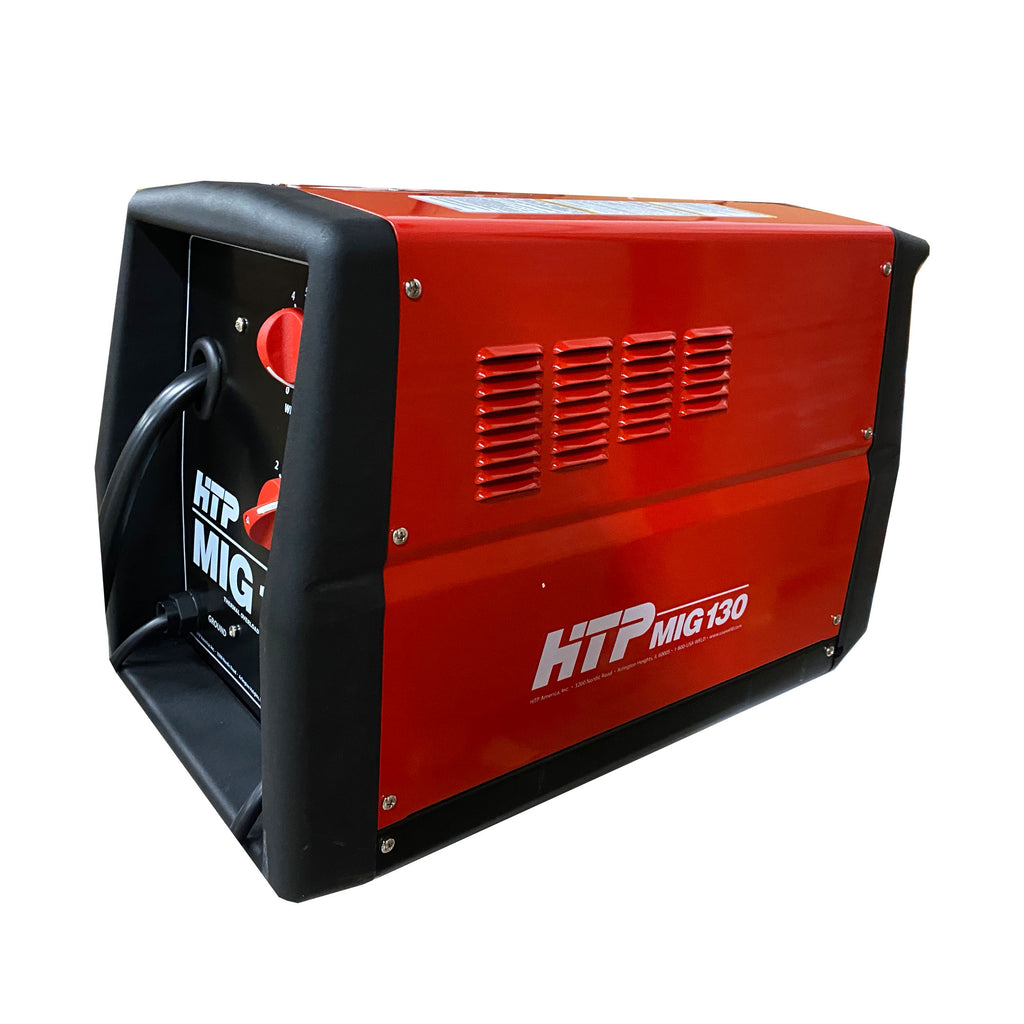

The HTP® MIG 130 is an affordable MIG welding package for the do-it-yourselfer. The welder operates on 110 volts and gives you the ability to weld anything from thin sheet metal up to 3/16" steel. The machine features four heat settings, an infinite wire feed adjustment, a 7' MIG welding gun, a 5' ground cable and clamp assembly, along with a 6-1/2' input power cord.

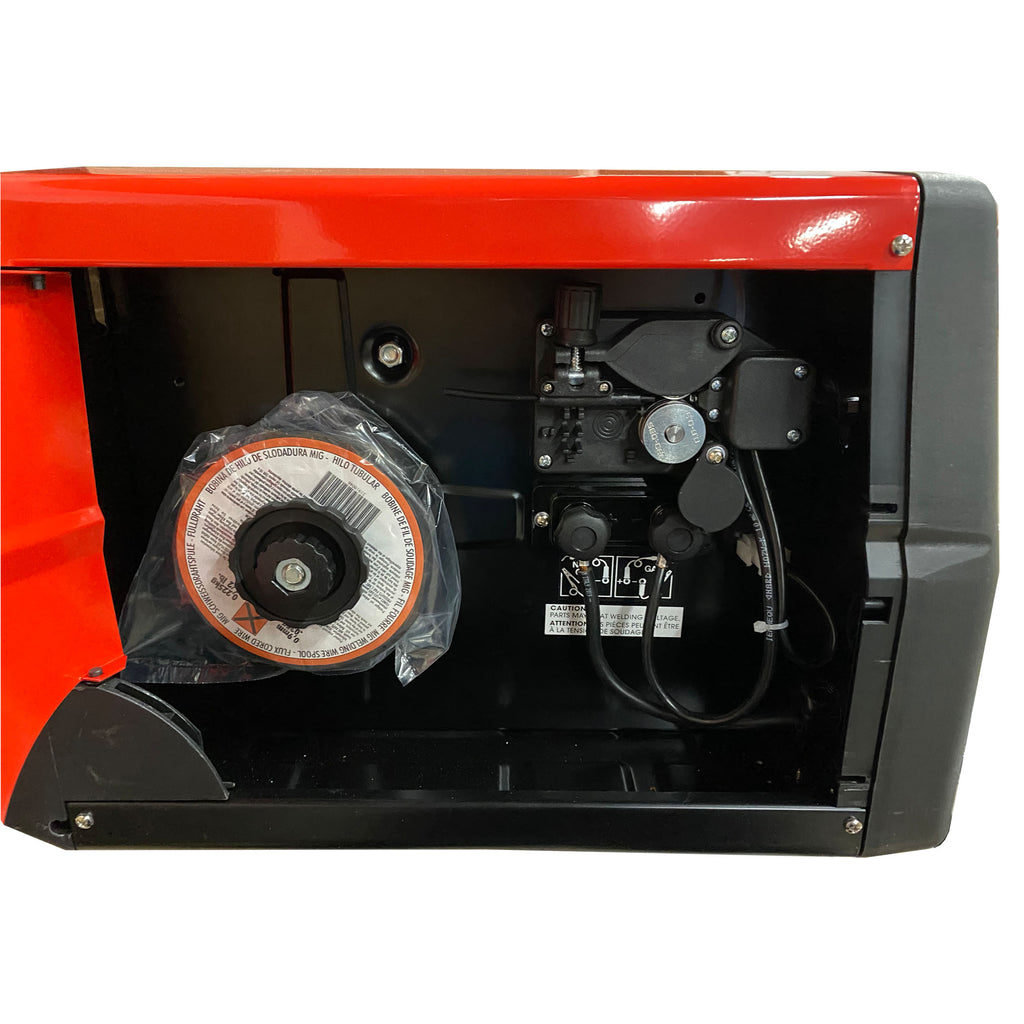

The versatile welder uses both 4" and 8" diameter spools of wire, and comes ready to weld with extra tips, a roll of .035" flux-cored (gas-less) wire, flowmeter, and a gas hose adapter. Polarity reversal requires no tools. Just add a tank of 75% Argon, 25% CO2 shielding gas and you're ready to go!
HTP backs the MIG 130 with a 30-day money-back guarantee and a 3-year warranty.
| Input Voltage | 110V |
| Input Amperage | 25A |
| Maximum Output Amperage | 130A |
| Minimum Output Amperage | 25A |
| Maximum Recommended Thickness | 1/8" to 3/16" |
| Heat Settings | 4 |
| Duty-Cycle | 10% @ 130A 100% @ 40A |
| Open Circuit Voltage | 19 to 30V |
| Cooling | Fan (Forced Air) |
| Wire Spool Capability | 4" and 8" |
| Wire Diameter | .023" to .035" |
| Frequency | 50/60 Hz |
| Wire Feed Rate (In./Min.) | 40 to 600 IPM |
| Dimensions (Length x Width x Height) | 19" x 11" x 17" |
| Weight | 49 Lbs. |
Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.
