Download ManualWe are currently out of stock; if you are interested in purchasing this machine please contact us to be put on the waitlist. 847-357-0700 or customerservice@htpweld.com. Current ETA is July

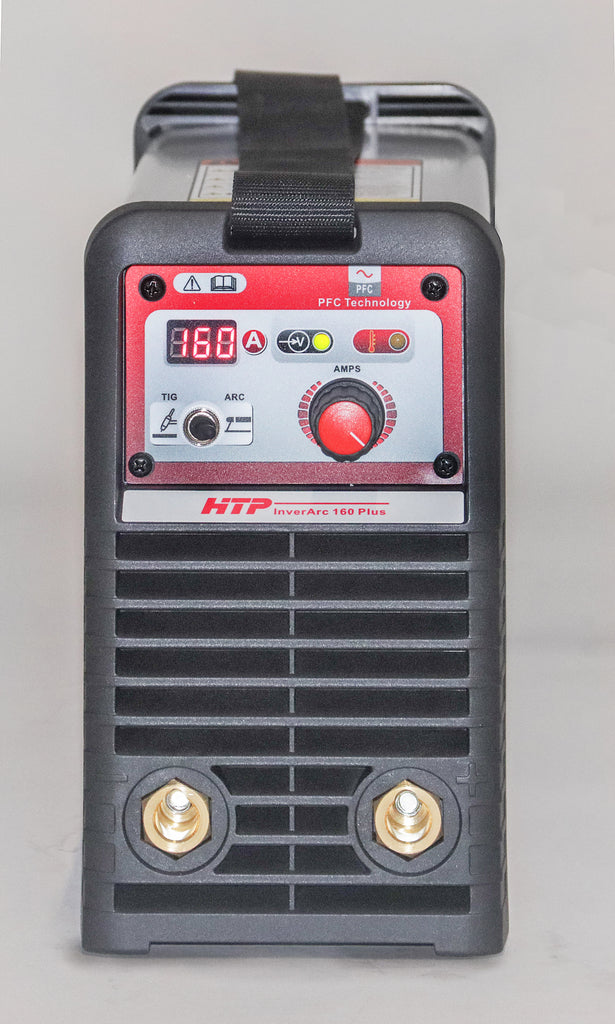

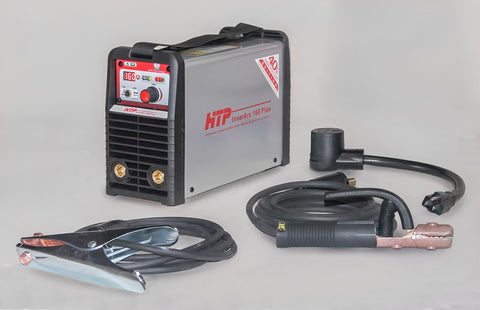

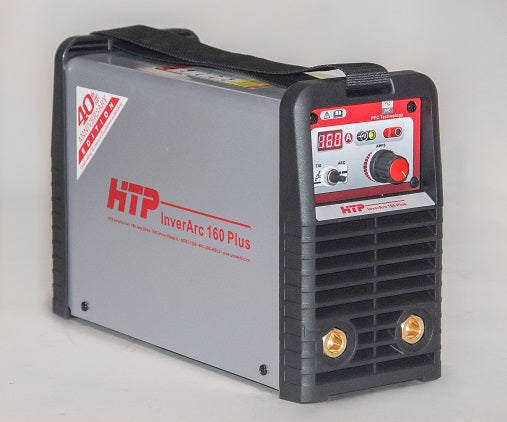

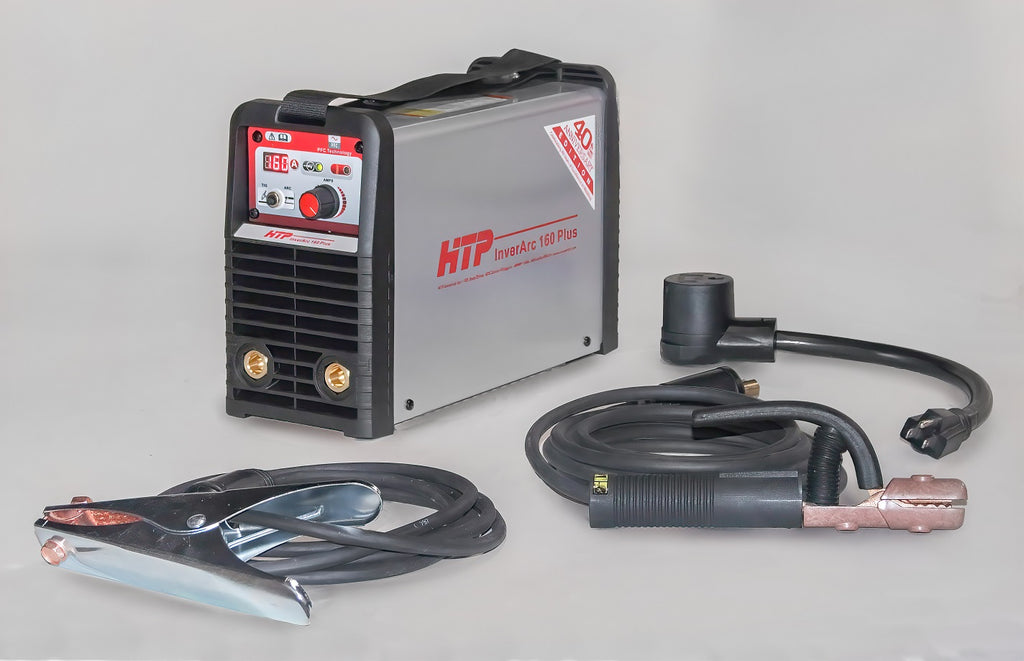

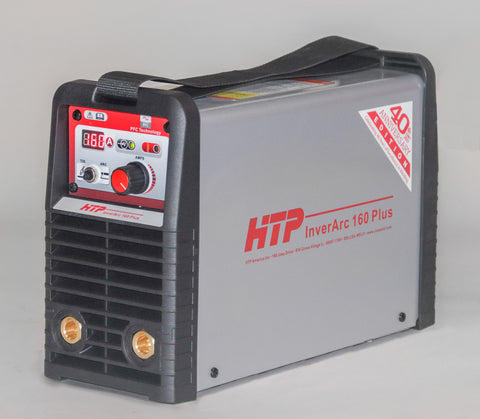

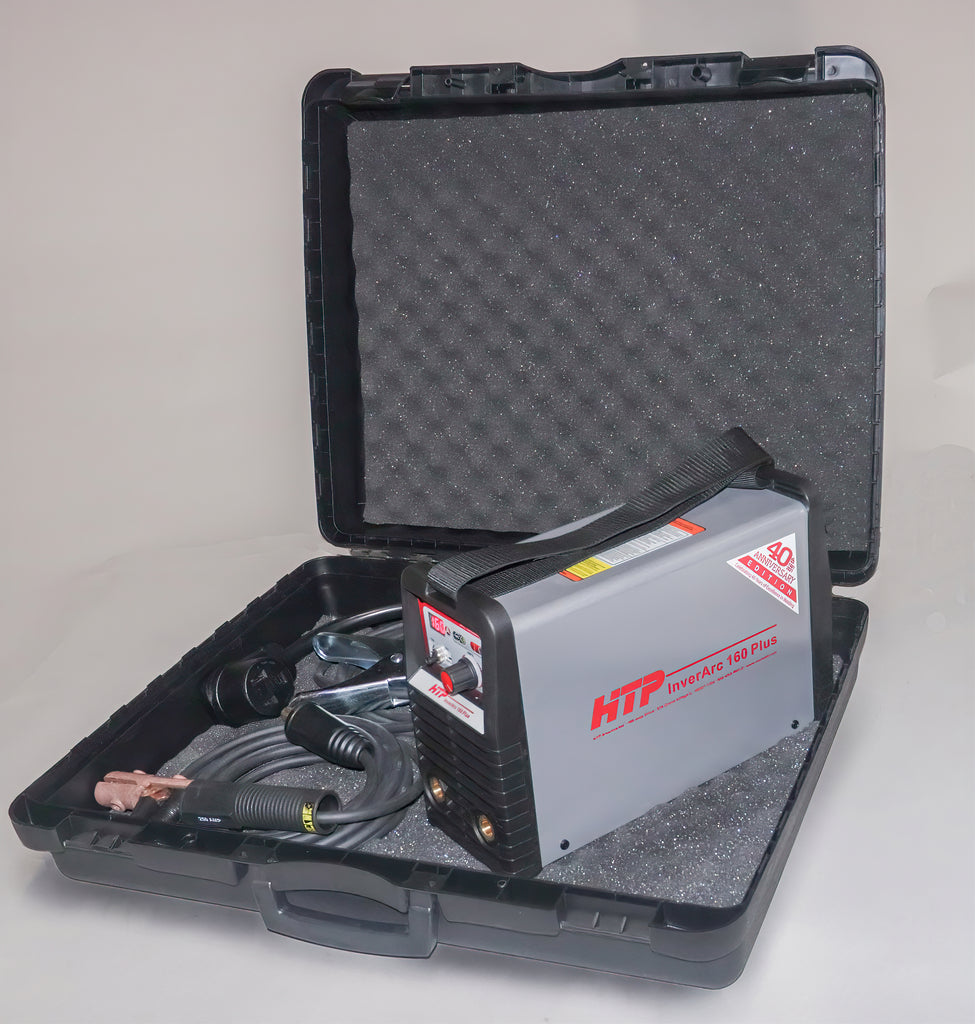

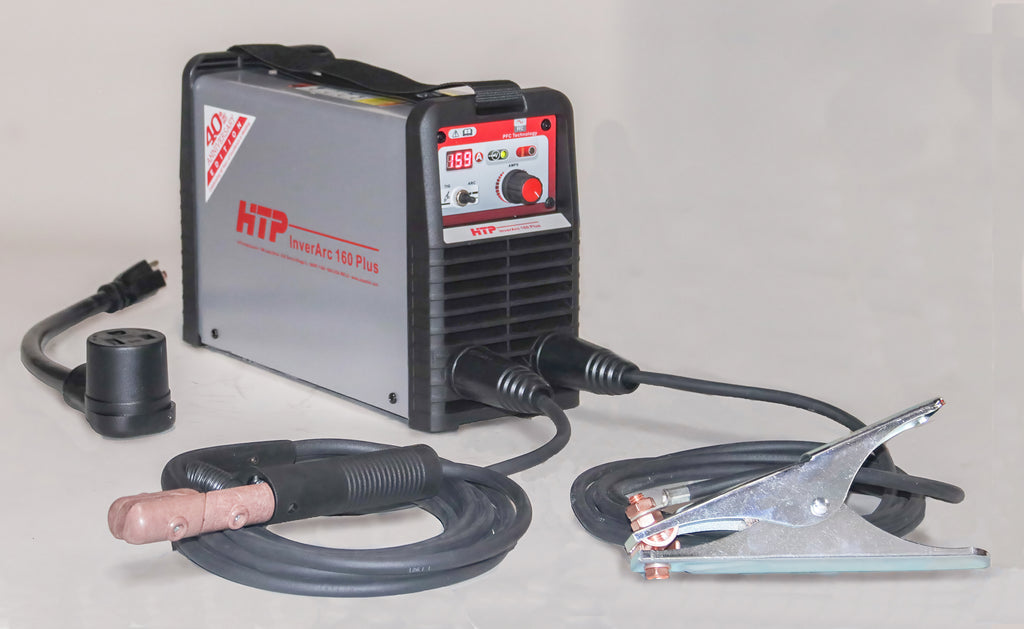

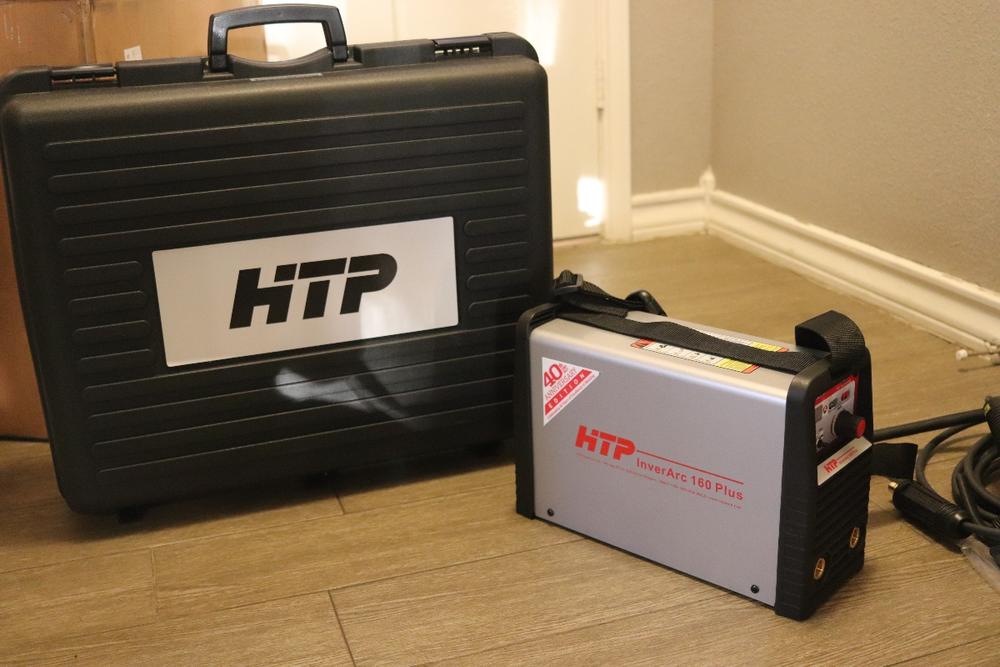

You ask and we executed: introducing the HTP Inverarc 160 Plus. This little stick welder operates on single phase with 110V or 220V power! The machine draws 21.3 amps out of the wall when operating at a welding output of 160 amps. With the InverArc 160 Plus, you can run the following processes: SMAW (stick) and GTAW (TIG). The InverArc 160 Plus features an IGBT (insulated gate bipolar transistor) power module. The microprocessor circuit controls and optimizes arc transfer irrespective of the load variation and of the impedance of the welding cables. The inverter technology used in the InverArc 160 Plus enabled us to obtain the following:
- Lightweight design with compact dimensions
- Reduced energy consumption
- Excellent dynamic response
- Very high power factor and yields
- Better welding characteristics
- Ease of use
All the characteristics of this machine allow it to be user friendly for anyone. Ideal for a pipe fitter out in the field or hobbiest looking for the perfect stick welder. With a three year warranty and unbeatable customer service the Inverarc 160 Plus would be a great addition to your welder lineup.
Generator Use: The machine draws 21.3 amps out of the wall when operating at a welding output of 160 amps. If you operate the machine on a generator, it needs to be a clean power generator with a minimum of 6500 watts (6500 watts must be the continuous rating or running watts rating of the generator, NOT the peak rating or starting watts rating of the generator). To operate on 110/120 Volt a dedicated 20 amp circuit shall be used.
Noise Level: The sensitive components used in the InverArc 160 Plus are cooled with forced air by fans with low noise production, and the InverArc also features sophisticated, electronic overheat protection to prevent damage to your machine.

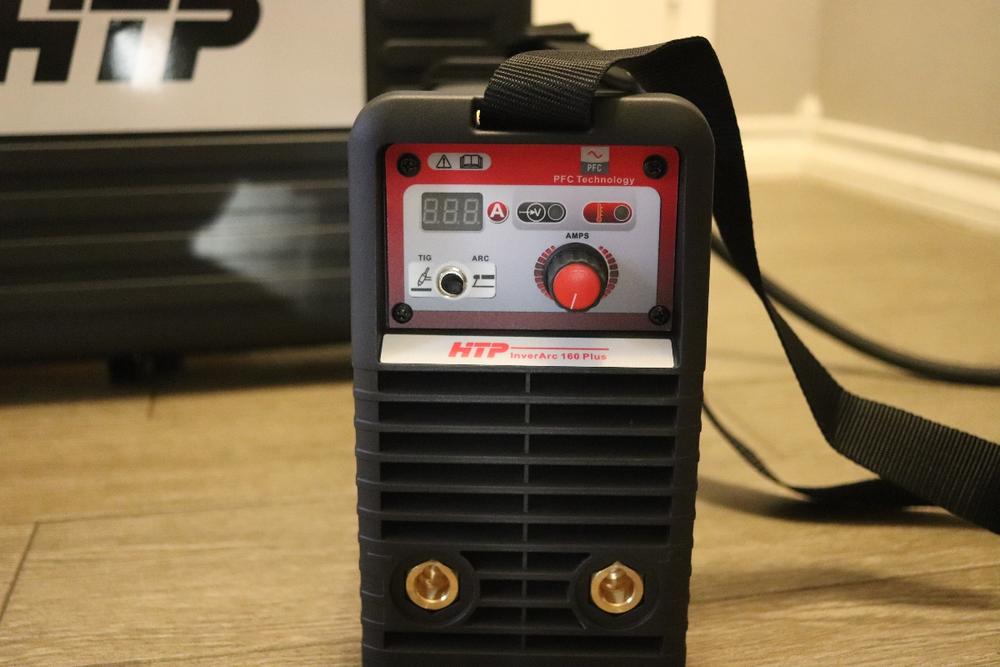

TIG Abilities: The InverArc 160 Plus also functions as a lift-start, DC TIG. To run the InverArc in the TIG welding mode, you only need a TIG torch (with a gas valve in the handle), a flowmeter, and a gas bottle. You can adjust the output amperage without a remote control—simply use the knob on the InverArc to adjust the output amperage as necessary.
| Input Power | 120V, Single Phase, 50/60Hz | 230V, Single Phase, 50/60Hz | ||
Stick | TIG | Stick | TIG | |
Maximum Input Amperage (A) | 31.8 | 19.5 | 21.3 | 13.8 |
Effective Input Power (A) | 17.4 | 17.4 | 13.5 | 8.7 |
| Power Factor | 0.99 | 0.99 | ||
| Output Amperage (A) | 10 to 125 | 10 to 160 | ||
| Max No-Load Voltage (V) | 55 (80) | |||
| Duty Cycle (Stick & TIG) | 30%@125A 60% @ 95A | 60% @ 125A | 40% @ 160A | |
| Protection Class | IP23 | |||
| Insulation Class | F | |||
| Dimensions (L x W x H) | 14.37” x 5.51” x 9.06” | |||
| Weight | 17.64 Lbs. | |||
CA Prop 65 - For Residents of California
Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
United StatesGreat little dual voltage "lunchbox" stick welder !
This is a butt kicking little lunchbox stick welder! Duty cycle is awesome, and it will properly run Lincoln 5P+ / 6P+ 6010 rods! And by "properly", I mean it doesn't have to be forced the way you would have to with the very low-tier lunchbox stick welders that advertise & claim to be able to run 6010s. With the Inverarc 160 Plus, you don't have to bury the 6010 rod into the puddle just to keep it lit. You can whip-n-pause with a decently generous arc length and the arc will not extinguish! Just don't use cheap/lower quality 6010s, as they will extinguish likely due to very thick flux or different flux formulations. Best Welds/Blue Demon 6010s won't work. Böhler Fox 6010s work OK, but I don't recommend them on this machine. HTP sells Kiswel 6010s which I should have bought because it is supposed to run those very well! I should've ordered a few pounds when I ordered the machine, but I forgot. Next time! :) The 15ft length stinger cable is nice for a good reach, and uses Flex-a-prene USA Made cable as does the ground/work clamp. The PFC circuit keeps power-consumption as low as any top-tier inverter stick welder for a given amperage (power factor is 0.99!) , and assures identical arc dynamic/performance on a 120V outlet as it does on a 240V outlet. Max amps and duty cycle is a bit lower on 120V outlet, but the arc is just as good and not "de-rated" like it is on very cheap inverter lunch box welders, which means you CAN run 6010s on a 120V/20A outlet! Opening it up inside, is a huge fan, and it is almost all aluminum heatsink inside! This is not a typical cheap lunchbox stick welder! None the less, do keep in mind to get over 90 or 95A on 120V, you DO need a 30A breaker. The case is a nice bonus, as it has plenty of space to throw in your gloves, rods, heck even a few grinders if you want.
