TIG Welders

Invertig 221 AC/DC Dual Voltage Air-Cooled

Product # 601068

Download Manual


12.5' 17 Series Air-Cooled TIG Torch, 12.5' Foot Pedal, 10' Ground Clamp, Flowmeter, 6’ Gas Hose, Complimentary EDGE Welding Consumable Kit

Does Not Include:
Welding Cart, Gas Bottle, Tungsten, Filler Rod

  • Regular priceList

  • Our Price:
  • $3,034.95

  • You Save: $974.05 !

Financing as low as


Apply Now!


We are currently including the Optrel Neo P550 Panther helmet and a pair of gloves with the purchase of any welder while supplies last.  Please make sure to indicate your preferred size M, L, or XL in the notes/comments section at check out.  If you do not specify a size we will include size Medium gloves.

The Invertig 221 AC/DC Inverter TIG Welder allows you to produce welds with all types of metals! We increased the maximum welding current by 10% to a full 220 amps of rugged welding power. We also put the machine on a diet—the Invertig 221 weighs in at only 54 Lbs. so it's easy to take right to the job!

We packed the Invertig 221 with features many of our competitors don't even offer at twice the price! The Invertig 221 is the only welder in its class with independent AC amperage adjustment, which gives you precise control over the heat input to both the work piece and the tungsten by allowing you to separately adjust the electrode negative and the electrode positive amperage.

Conventional transformer TIG welders have a fixed AC frequency of 60 Hz (the same as your household current) and use a pure tungsten electrode which forms a ball when welding AC. The Invertig 221 offers you the ability to adjust the AC frequency from 20 Hz to 200 Hz—the higher AC frequency gives you a more focused arc with greater arc control. With an inverter, running a higher AC frequency, say in the 150 Hz to 200 Hz range, allows you to use Ceriated, Lanthanated, or Thoriated tungsten sharpened to a point, which:

1. Allows the arc to jump from a point instead of a ball, which provides unparalleled arc stability and reduces arc wandering.
2. Produces a more focused arc, which results in a narrower bead and makes it much easier to weld inside corners.
3. Minimizes the heat affected zone as the heat is more concentrated, which makes it easier for both the novice and professional to weld thin materials.

The Invertig 221 also gives you precise control over the AC balance (from 10 to 90%) so you can control the arc cleaning action.

Furthermore, the Invertig 221 makes an excellent DC welder. The smooth, stable arc coupled with the 221's high speed DC pulse makes intricate work on mild steel, stainless steel, inconel, and titanium a breeze. High speed DC pulse focuses the DC arc much like the AC balance focuses the AC arc and results in more control and less arc wandering. With a pulse rate of up to 999 pps, there isn't a job out there that the 221 can't handle.

Control of the arc is the foundation of better welds and precise results. With independent AC amperage adjustment, adjustable AC frequency, adjustable AC balance, and high speed DC pulse, the Invertig 221 gives you arc control like you never experienced before.

The Invertig 221 allows you to store up to 64 separate welding programs. Say you find a setting you really like for welding aluminum radiator tanks to cores—AC On, HF On, Max Current @ 180 amps, AC balance @ 65%, AC frequency @ 180 Hz, EP @ 60%, Pulse Frequency @ 1 Hz, Peak Time @ 80%, and Background Current @ 30%. Simply store the program and recall the program when you have another tank to core job. Assigning banks of memory slots to multiple welders allows the welders to access their personal settings in a job shop environment.

Conventional arc welding is simple with the Invertig 221. Using the Stick Mode in conjunction with the foot pedal allows you to vary the welding amperage. Perfect when doing pipe welding!

Select the touch start mode for welding aluminum or any other material without High Frequency. This is important if your application takes you near sensitive electronic equipment, such as on site repairs in a hospital or when repairing aluminum vehicles with on-board computers.

The advanced technology found in the Invertig 221 allows you to produce professional quality welds—quickly, easily, and affordable—with all types of metal. Every Invertig 221 comes with our 30-Day Money Back Guarantee. We are so sure you will love your Invertig 221 that you can try it in your own shop for 30 days. If for any reason you don't like it, we will take it back no questions asked. Further, we back the Invertig 221 with a 3-year warranty.

The standard Invertig 221 AC/DC Dual Voltage air-cooled package includes the following items:

♦ Invertig 221DV AC/DC Power Source
♦ 12.5' 17 Series Rigid Neck Air-Cooled TIG Torch*
♦ 12.5' Foot Pedal*
♦ Flowmeter
♦ Gas Hose
♦ EDGE Consumable Kit
♦ 10' Ground Cable and Clamp Assembly*

*Upgrade options available, via drop down boxes above, for additional charges.

Input Voltage 110V/220V (208 to 240V)
Welding Current Single-Phase 4 to 220A
Single-Phase Rated Output 20% @ 220A
230V Single-Phase Input Amps @ Rated Load 26A
Welding Modes Stick
TIG Spot
TIG Reset
Programmable Memories 64
Asymmetric Arc Yes
AC Frequency (Hz) 20 to 200
AC Balance (%) 10 to 90
Pre-Flow (Seconds) 0.1 to 2.0
Post-Flow (Seconds) 0.1 to 30.0
Initial Amps (%) 10 to 90
Final Amps (%) 10 to 90
Slope Up (Seconds) 0.1 to 2.0
Slope Down (Seconds) 0.1 to 2.0
Spot Time (Seconds) 0.1 to 10.0
Wave Forms Square
EN Amperage (%) 10 to 90
EP Amperage (%) 10 to 90
Duty-Cycle (TIG) 20% @ 220A
60% @ 165A
100% @ 145A
Duty-Cycle (Stick) 25% @ 200A
60% @ 155A
100% @ 140A
Dimensions (Length x Width x Height) 19-3/4" x 7-1/2" x 15-3/4"
Weight 42 Lbs.
Pulse Parameters
Pulses/Second (PPS) Stick AC & DC
Pulses/Second (PPS) TIG AC
Pulses/Second (PPS) TIG DC
Peak Time (%)
Background Amps (%)

0.4 to 5.0
0.4 to 10.0
0.4 to 999
10 to 90
10 to 90

CA Prop 65 - For Residents of California
Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Customer Reviews
5.0 Based on 4 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Customer Photos
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Hector Z.
United States United States

inverting 221

amazing machine capable to tackle any type of job. love the diversity the pulse settings and how crips the arc starts on the weld. Would truly recommend this machine to anyone interested on a tig welder. Also love the customer service.

MichaeI I.
United States United States

Htp 221dv

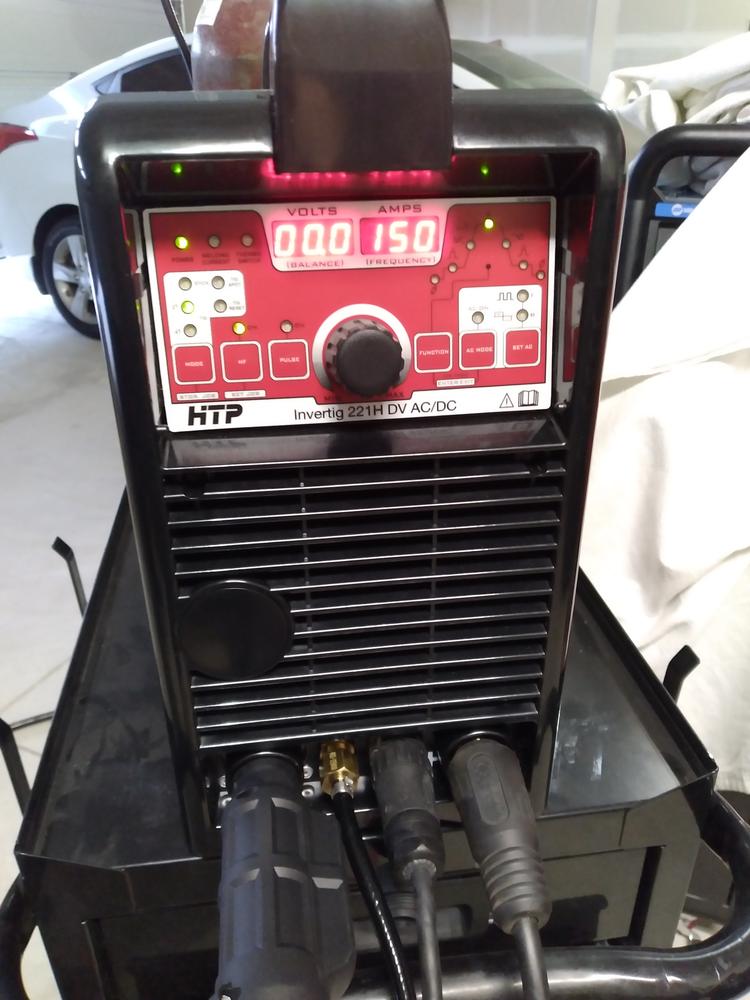

I really love how the cooling fan is on the machine. It sits at a low idle which is very quiet. Then when you start welding it ramps up and isn't very loud. The low end of 4 amps on DC is great. You can easily weld your stubs of used up filler rod together to make new filler rods. The asynchronous waveform setting on this machine cannot be found on any other machine in this price category. Miller charges $550 extra for this feature. Great machine. Would buy again in a heartbeat.

HTP America - USA Weld Invertig 221 AC/DC Dual Voltage Air-Cooled Review
Julian P.
United States United States

Compact and powerful

The invertig225 is a great machine, it’s quite versatile and has plenty of power to handle most fabrication needs. This thing also has a really stable arc. Interface is overall simple you just need to spend the time to read the manual and see what buttons to press to get certain features. The machine is pretty quiet as well which is nice. Above all, HTP’s customer service is fantastic! Heather is super nice and easy to deal with, the regulator was bad out of the box and she had a replacement in my hands within 48hrs. I purchased HTP’s product purely from references and I am glad I did because they are amazing machines. Thank you

HTP America - USA Weld Invertig 221 AC/DC Dual Voltage Air-Cooled Review
Tim T.
United States United States

I'm very happy with the invertig 221 dv. The arc is very smooth and really nice low amp starts. Also usawelds customer service is excellent.
