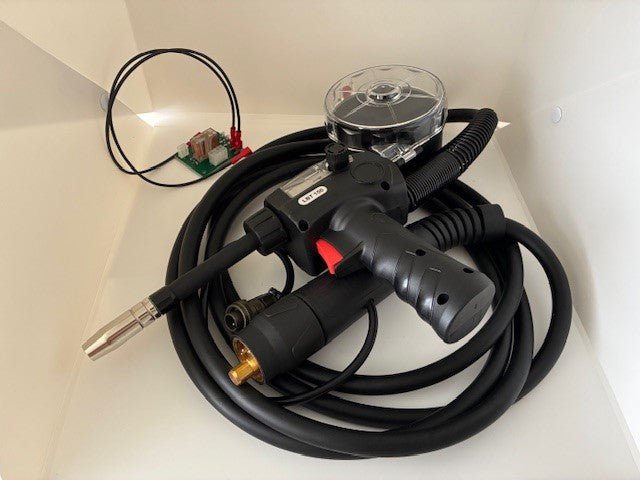

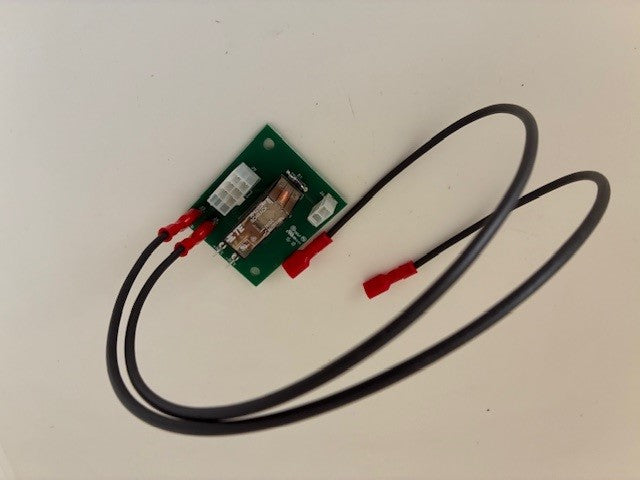

Designed to work with the HTP® Mig 1400i and Mig 2000i welders. This spool gun uses the Binzel 15 series consumables. This spool gun includes the board that is needed in order to use this with either the Mig 1400i or Mig 2000i.
Consistent Wire Feeding
The u grove drive roller will run .030-.040 aluminum wire 4000 or 5000 series.
Durable Parts
The barrel, drive motor and cast aluminum drive box are heavy-duty.
Versatile Wire Options
Weld both 4000 and 5000 series aluminum wire with the Sp 150. Adjustable drive roll tension for feeding different types of wire.
Spool Visibility
The clear spool cover provides visibility to the wire so you can see how much is left on the spool.
20-foot Direct Connect Cable
Heavy-duty strain relief provides extended reach and accessibility to your work.
Adjustable pressure lever for easy loading and unloading of wire.
Heavy duty drive motor and cast aluminum gearbox
20 foot (6.1m) direct-connect cable with heavy-duty strain relief.
This spool gun uses the HTP 15 series consumables.
Warrantied for 90-Days. Spool guns are ineligible for the 30-day money back guarantee return policy/no returns accepted.
| Amperage | 60% @ 250A |
| Weight (Gun Only) | 2.75 Lbs. |
| Weight (Gun & Cable) | 14 Lbs. |
| Wire Feed Rate (In./Min.) | 50 to 650 IPM |
| Wire Size | .023", .030", .035", and .045" |
| Wire Type | Aluminum, Flux-Cored, Mild Steel, and Stainless Steel |
| Spool Size | Standard 4" |
