.035/.045" Drive Rolls (P/N 63606-2), MIG Gun, 15' ground clamp, Victor Flowmeter, Gas Hose, PVC Spacer, and Nema 6-50P plug
Please see the Accessory Package tab to find the details of what each package includes.
Strike the Arc. Light the Fire of Freedom.
From the Revolution, we gained our Independence. And now - we weld with Freedom.

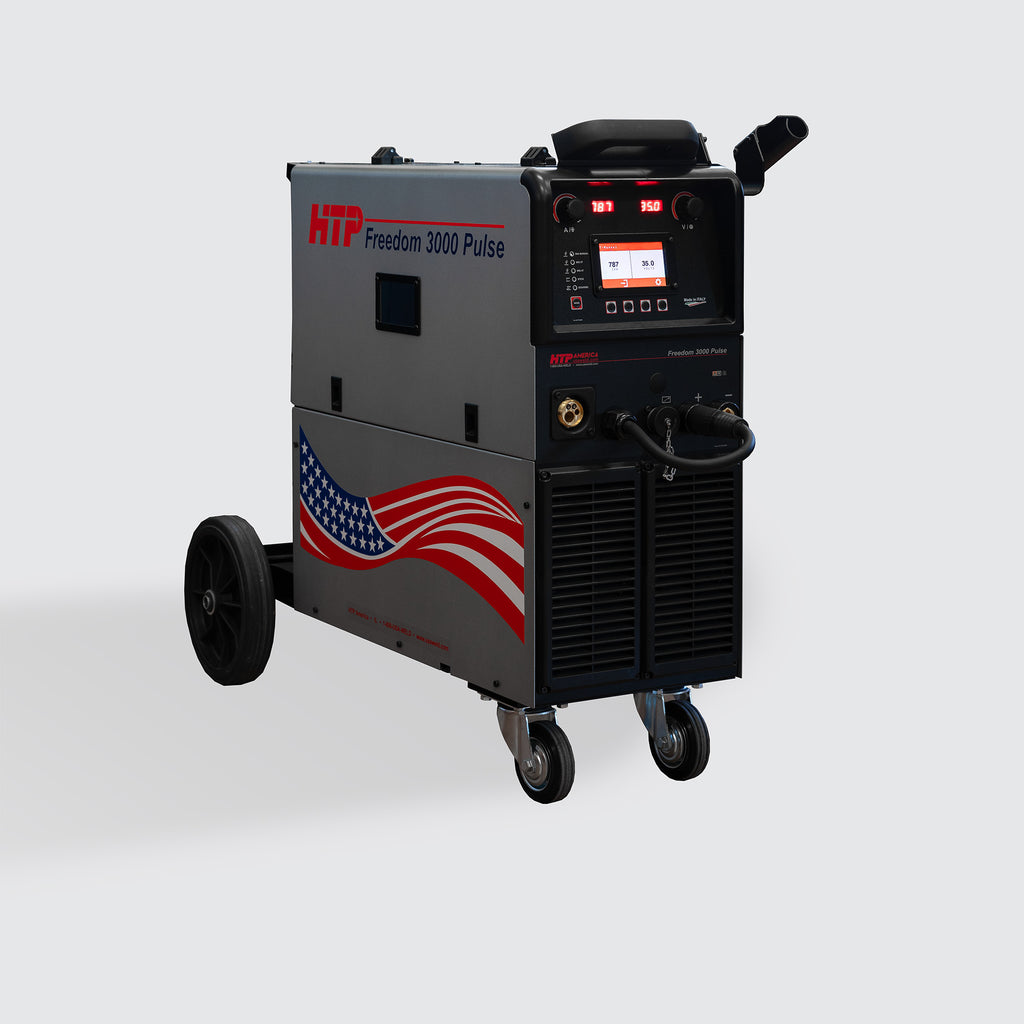

Introducing the FREEDOM 3000 Pulse, HTP America’s next-generation MIG welding powerhouse. Built on the proven foundation of the beloved MIG 2800i, this machine doesn’t just raise the bar - it redefines it. With single-phase power, advanced pulse MIG capabilities, and a bold American spirit, the FREEDOM 3000 Pulse is engineered for those who refuse to compromise.
This isn’t just another MIG welder. This is the torchbearer for a new era. When the Revolution 2500 set the wheels of change in motion, we knew what had to come next. Freedom. The ability to weld smarter, cleaner, and stronger - on your terms.
Key Features of the FREEDOM 3000 Pulse:
• 🇺🇸 Single-Phase Power, Industrial Performance – Get pro-grade results without needing industrial power. Plug into 240V and weld with confidence wherever the job takes you.
• ⚡ Pulse MIG Welding – Lay down precision welds on steel and aluminum with minimal spatter and distortion. Clean, controlled, and beautiful—just the way freedom should feel.
• 🔥 Up to 300 Amps of MIG Power – Whether you’re working light gauge or thick plate, the FREEDOM 3000 delivers the raw, dependable muscle to get the job done.
• 🎛️ Intuitive Digital Interface – Full digital control gives you the power to fine-tune every weld. Easy setup. Precise adjustments. Total control.
• 🔄 Synergic MIG Modes – Let the machine do the thinking. Perfect for beginners and pros alike, synergic programs simplify setup for wire type, material, and thickness—without sacrificing results.
• 🧰 Multi-Process Capable – While it shines in MIG, the FREEDOM 3000 is no one-trick pony. It’s ready to tackle Carbon air arc, flux-core and spool gun welding with ease.
• 🔧 Spool Gun Ready – Plug-and-play spool gun support makes aluminum welding fast and frustration-free.
• 🦅 Made by HTP America, Backed by Patriot Grit – Developed with American ingenuity, supported by our team in Illinois, and built for welders who carry the spirit of the stars and stripes in every bead.
⸻
The FREEDOM 3000 Pulse isn’t just a MIG welder — it’s a symbol. A machine that empowers fabricators, builders, and dreamers across this great nation to do what Americans do best: build. Whether you’re working in a garage, a farm, a race shop, or the open field, this is the MIG machine that answers the call.
Weld with honor. Weld with power. Weld with Freedom.
The FREEDOM 3000 Pulse – only from HTP America.
A minimum of a 230 Volt line voltage input to the machine is required to be able to use the pulse programs for steel and aluminum. In addition, you will also need hotter gas like 90/10 or 92/8-the 75/25 gas will not be sufficient for pulse welding. If you only have 208 you can still use this machine but it will not be able to run the pulse programs. (Please also note that if you plan to run on 208 you will need a 60 amp breaker).
IMPORTANT INFORMATION REGARDING TRUCK FREIGHT SHIPMENTS
The HTP Freedom 3000P SHIPS to any business/commercial address with access to a forklift in the Contiguous United States (i.e., the lower 48) for a flat fee of $250. If you choose to ship the machine to your residence, accessorial fees will apply (a residential delivery fee, a lift-gate service fee, and possibly a limited access fee). Accessorial fees vary by ship to location and by freight carrier. You may place your order online, but you will be contacted by Customer Service to arrange and pay for any applicable accessorial fees. To avoid accessorial fees, we can also ship the machine to your nearest freight terminal, where the carrier will hold your machine for you to pick-up. **Please note that if you have indicated that you do not need lift gate at time of delivery and the carrier drops the lift gate, you will be contacted to pay the additional charge for this service. **
Also, if your ship to address is in Alaska, Guam, Hawaii, Puerto Rico, or any other U.S. Territory outside of the Contiguous United States, partial shipping charges will apply and accessorial fees may apply. You may still place your order online, but you will be contacted by Customer Service to arrange and pay for partial shipping along with any applicable accessorial fees.
IMPORTANT INFORMATION REGARDING TRUCK FREIGHT SHIPMENTS AND LOST OR DAMAGED GOODS
KEEP ALL SHIPPING CARTONS AND PACKAGING MATERIALS!
Your truck freight shipment leaves our facility and is accepted by the freight carrier in good condition. The material becomes your property when signed for by the freight carrier. Our responsibility for the shipment ceases when signed for and removed from our facility by the freight carrier.
Inspect your shipment thoroughly as soon as received. If possible, unpack the shipment in the presence of the driver. If this is a "HOLD ON DOCK FOR PICK-UP" shipment, inspect the shipment prior to leaving the freight terminal. If you do not inspect the shipment for loss or damage prior to signing for and leaving the freight terminal with the shipment, then the freight carrier will claim that you damaged the shipment bringing it home. If you notice loss or damage, then you must note this on the freight bill.
We are willing to assist you in every possible manner in the collections of claims for loss or damage, but this willingness does not make us responsible for such collection of claims or replacement of materials.
| Input Voltage | Single Phase: 230V/240V |
| Input Amperage (@ Max Output) | Single Phase: 54A |
| Maximum Output Amperage | MIG: 300A Stick & Gouging: 260A |
| Minimum Output Amperage | MIG: 15A Stick & Gouging: 5A |
| Maximum Recommended Thickness *Single pass capacity varies depending on the material being welded and the settings of the machine. | Up to 3/8" |
| Duty-Cycle | MIG 40% @ 300A (77º F)
Stick & Gouging 40% @ 260A (77º F) |
| Arc Voltage | 13-35V (MIG +/-8) |
| Open Circuit Voltage | 68V |
| Electronic Overload Protection | Yes |
| Cooling (On-demand, electric fan, variable speed) | Dual Fan (Forced Air) |
| Wire Spool Capability *Up to a 44 Lb. weight capacity. | 8" and 12" |
| Wire Diameter *Depends on the material being welded (not all wire can be welded in all sizes). | .030" to .045" |
| Frequency | 50/60 Hz |
| Wire Feed Rate (In./Min.) | 55 to 787 IPM |
| Dimensions (Length x Width x Height) |
|
| Weight *Without wire and cables. | 138 Lbs. |
Downloads/Manuals
The HTP FREEDOM 3000 PULSE is available in five package deals with different configurations.
Here are the details of each package:
FREEDOM 3000 PULSE STANDARD PACKAGE ($2999.00) includes the following items:
10' 36 series steel gun (36100)
.035/.045 steel drive roller installed in the machine
15' 1/0 ground cable (22315-1/0)
Flowmeter (12020-F)
Gas hose(tighoseusa)
Spacer for spindle
Nema 6-50P plug
User’s Manual
***A minimum of a 230 Volt line voltage input to the machine is required to be able to use the pulse programs for steel and aluminum. In addition, you will also need hotter gas like 90/10 or 92/8-the 75/25 gas will not be sufficient for pulse welding. If you only have 208 you can still use this machine but it will not be able to run the pulse programs. (Please also note that if you plan to run on 208 you will need a 60 amp breaker).***

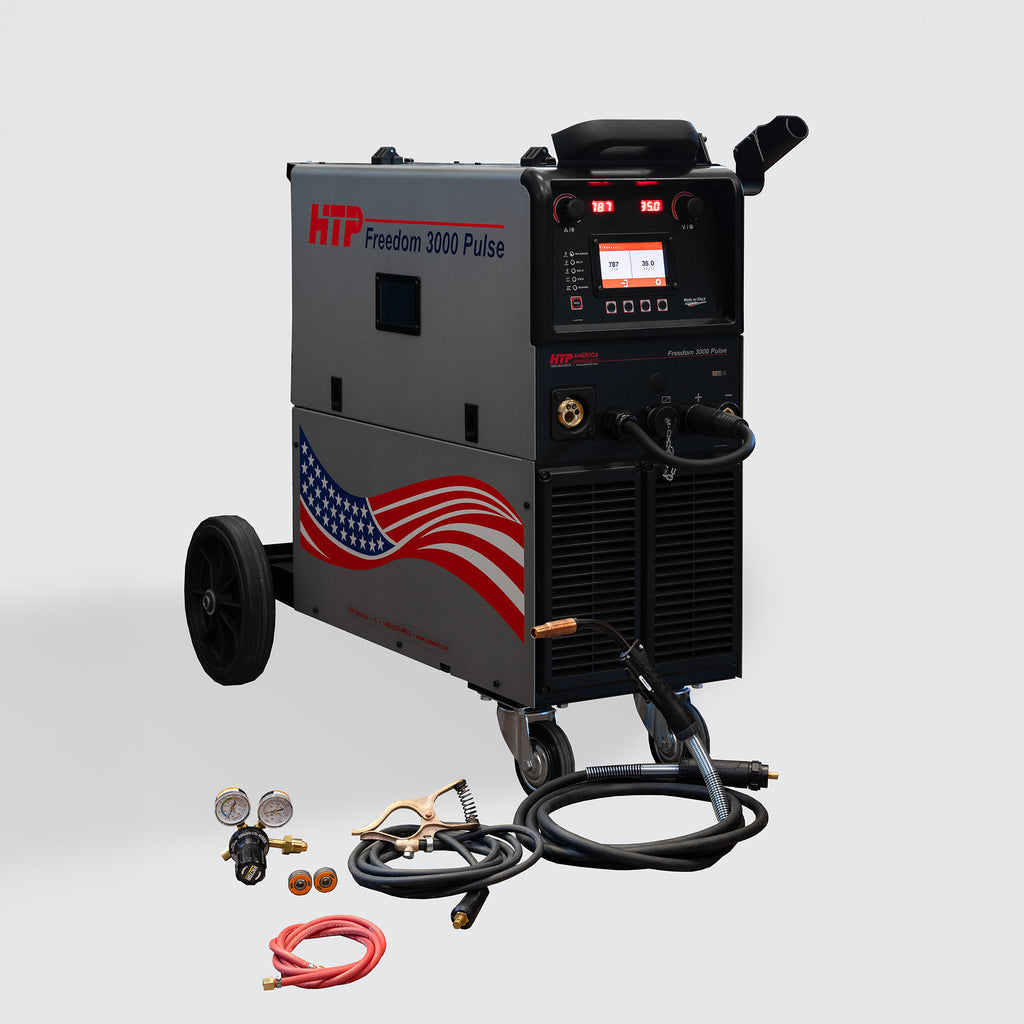

FREEDOM 3000 PULSE Heavy duty package ($3499.00) includes the following items:
15' Tweco #4 steel gun (TW400-16s-15)
.035/.045 steel drive rollers installed in the machine
.035/.045 flux core drive rollers (63616-2)
15' 1/0 ground cable with cast brass clamp (22315-1/0-hd)
Victor Flowmeter (07819411)
Gas hose (tighoseusa)
PVC spacer for spindle
Nema 6-50P plug
User’s Manual
***A minimum of a 230 Volt line voltage input to the machine is required to be able to use the pulse programs for steel and aluminum. In addition, you will also need hotter gas like 90/10 or 92/8-the 75/25 gas will not be sufficient for pulse welding. If you only have 208 you can still use this machine but it will not be able to run the pulse programs. (Please also note that if you plan to run on 208 you will need a 60 amp breaker).***
FREEDOM 3000 PULSE Heavy Duty Steel Package with Aluminum gun ($3699.00) includes the following items:
15' Tweco #4 steel gun (TW400-16s-15)
.035/.045 steel drive rollers installed in the machine
.035/.045 flux core drive rollers (63616-2)
10' 26 Series aluminum gun (26100)
.035/.045 aluminum drive rollers (63609-2)
15' 1/0 ground cable with cast brass clamp (22315-1/0-hd)
Gas hose (tighoseusa) and Victor regulator (07819411)
PVC spacer for spindle
Nema 6-50P plug
User’s Manual
*A minimum of 230 Volt line voltage input to the machine is required and pulse steel and aluminum-you will also need hotter gasses like 90/10 or 92/8-75/25 gas will not be sufficient.
FREEDOM 3000 PULSE Weld and Cut Package ($3799) includes the following items:
15' Tweco #4 steel gun (TW400-16s-15)
.035/.045 steel drive rollers installed in the machine
.035/.045 Flux core drive rollers (63616-2)
15' 1/0 ground cable with cast brass clamp (22315-1/0-hd)
Victor Flowmeter (07819411)
Gas hose (tighoseusa)
15' 1/0 Electrode holder (22315-arc1g)
7' Carbon Arc Gouging Torch k3000 (CAG-T-K3)
PVC spacer for spindle
Nema 6-50P plug
User’s Manual
***A minimum of a 230 Volt line voltage input to the machine is required to be able to use the pulse programs for steel and aluminum. In addition, you will also need hotter gas like 90/10 or 92/8-the 75/25 gas will not be sufficient for pulse welding. If you only have 208 you can still use this machine but it will not be able to run the pulse programs. (Please also note that if you plan to run on 208 you will need a 60 amp breaker).***
FREEDOM 3000 PULSE Spool Gun Package ($4599) includes the following items:
10' 36 series steel gun (36100)
.035/.045 steel drive rollers installed in the machine
PCB Spool gun board /valve installed (601987)
25' RSG258 Spool gun for HTP PP300/ Rev2500/ Mig 2800i Air cooled M8 tips (RSG258-PP300)
15' 1/0 ground cable with cast brass clamp (22315-1/0-hd)
Now includes Freedom 3000 Pulse dual tank holder kit part#602067000L
Gas hose (tighoseusa)
Victor Regulator (07819411)
PVC spacer for spindle
Nema 6-50P plug
User’s Manual
***A minimum of a 230 Volt line voltage input to the machine is required to be able to use the pulse programs for steel and aluminum. In addition, you will also need hotter gas like 90/10 or 92/8-the 75/25 gas will not be sufficient for pulse welding. If you only have 208 you can still use this machine but it will not be able to run the pulse programs. (Please also note that if you plan to run on 208 you will need a 60 amp breaker).***
These package deals allow you to choose the option that best suits your needs. If you require any customization or additional options, you can call in and provide the details to get a tailored package. Please note that no additional consumables are included.
