Please see the accessory package tab to see what is included in each package.
Does Not Include: Welding Cart or Gas Bottle
ORDER NOW SO YOU DONT MISS OUT!! PLEASE NOTE THAT YOUR ORDER WILL SHIP TOWARDS THE END OF JANUARY.
HTP FREEDOM 235 Pulse
Portable Power. Unshakable Freedom.
From the Revolution came Freedom and now, we go even further.
Introducing the FREEDOM 235 Pulse: the ultra-capable, ultra-portable pulse MIG machine from HTP America. As the successor to the Pro Pulse 220, this machine combines more power, more intelligence, and more freedom all in a rugged package that weighs just 44 pounds.
Whether you’re in the shop, in the field, or on the front lines of fabrication, the FREEDOM 235 Pulse is ready to roll. More muscle. Bigger screen. Smarter controls. And the ability to go wherever American welding takes you.
🔥 Key Features of the FREEDOM 235 Pulse:
• Pulse MIG Welding – Clean, precise welds on aluminum, stainless, or mild steel. Less spatter. Less cleanup. More productivity.
• ⚡ More Power Than the Pro Pulse 220 – With increased output and improved arc stability, this machine raises the bar for performance in the lightweight MIG class.
• 🖥️ Large, Full-Color Display – See everything clearly on the big, high-resolution screen even in bright light or on dirty jobsites.
• 🧭 Streamlined Menu System – Intuitive navigation means quicker setup and faster job changes. Weld smarter, not harder.
• 🧰 Push-Pull & Spool Gun Ready – Whether you prefer a spool gun or push-pull setup, the FREEDOM 235 Pulse delivers aluminum compatibility with zero compromise.
• 🔄 Synergic MIG Modes – Dial in wire type, material, and thickness let the machine handle the rest. Perfect for pros, accessible for beginners.
• 🪶 Only 44 Pounds – Portable and powerful. Built for the road, the shop, the trailer, or the truck bed.
•🔌 Single-Phase 240V Operation – Get full output without special power requirements. Plug into any standard 240V outlet and get to work.
•🦅 Built by HTP America – Designed, tested, and supported in the U.S.A. by people who know what it means to weld.
⸻
From shop floors to job sites, from restoration to fabrication the FREEDOM 235 Pulse lets you weld anywhere, anytime, with nothing holding you back. It’s not just another MIG welder. It’s the portable embodiment of American know-how and hard work.
The FREEDOM 235 Pulse – Built to Move. Built to Win. Built for You.
💥 Available now at www.usaweld.com
| Input Voltage | 230/240V (208 to 240V) |
| Input Amperage | MIG: 42.8V |
| Maximum Output Amperage | 230A |
| Minimum Output Amperage | MIG: 15A |
| Maximum Recommended Thickness *Single pass capacity varies depending on the material being welded and the settings of the machine. | 1/4" to 3/8" |
| Duty-Cycle | 30% @ 230A (77º F) 100% @ 140A (77º F) 20% @ 230A (104º F) 60% @ 140A (104º F) 100% @ 120A (104º F) |
| Arc Voltage | 13 to 35V |
| Open Circuit Voltage | 90V |
| Electronic Overload Protection | Yes |
| Cooling (On-demand, electric fan, variable speed) | Fan (Forced Air) |
| Wire Spool Capability *Up to a 44 Lb. weight capacity; 8" spools recommended for double pulse aluminum welding. | 8" and 12" |
| Wire Diameter *Depends on the material being welded (not all wire can be welded in all sizes). | .023" to .045" / 3/64" |
| Frequency | 50/60 Hz |
| Wire Feed Rate (In./Min.) | 55 to 629 IPM |
| Dimensions (Length x Width x Height) | 19-3/4" x 10" x 14-1/2" |
| Weight *Without wire and cables. | 48.5 Lbs. |
Downloads/Manuals
The HTP Freedom 235 is available in three different packages:

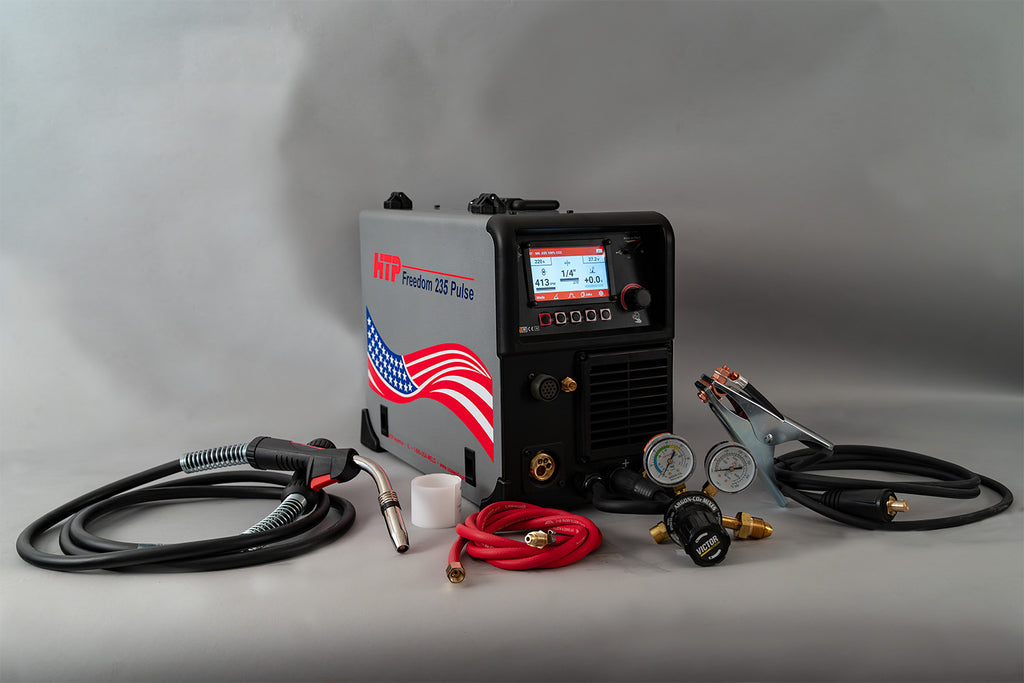

The HTP Freedom 235 (part# FRDM235-ST) 24 Series Steel package includes the following items:

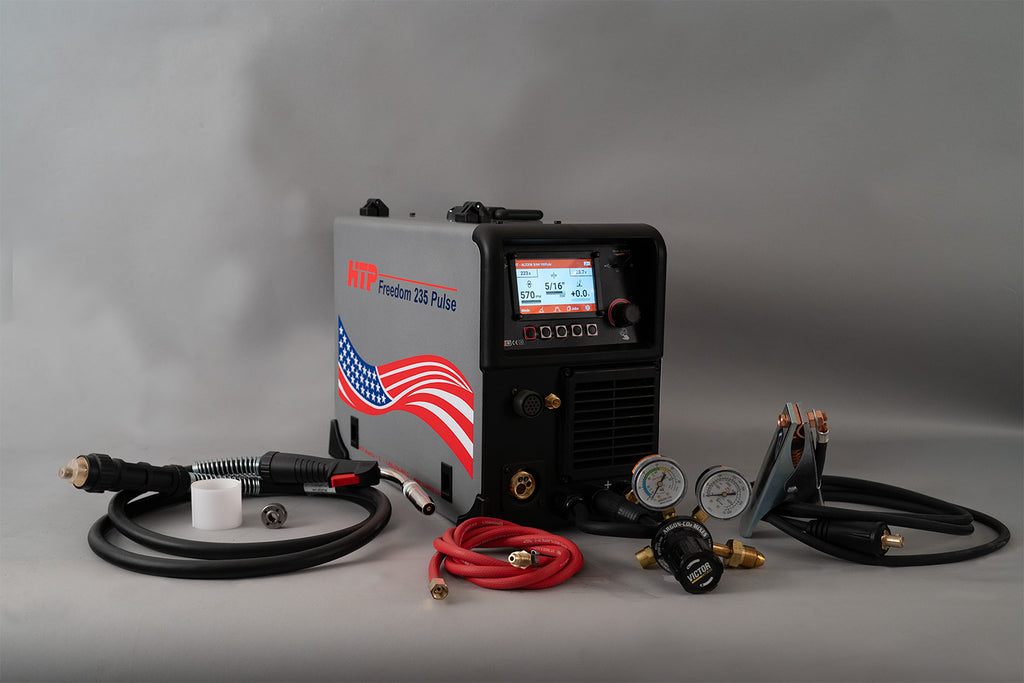

The HTP Freedom 235 (part# FRDM235-AL) 25 Series Aluminum package includes the following items:

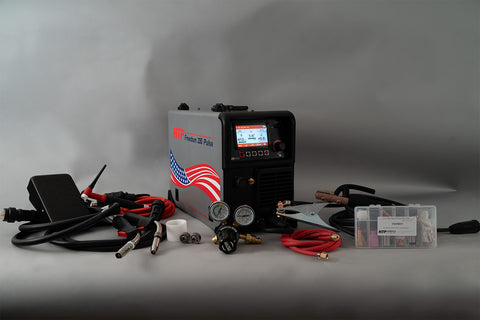

The HTP Freedom 235 (part#FRDM235All in) All In package includes the following items:
