17 Series (150A) Air-Cooled Torch w/35 Dinse & 9mm Quick Connect Gas Fitting

Product # 1712-35D-QD

  • Regular priceList

  • Price:
  • $124.95

  • You Save: $76.00 !


17 Series (150A) air-cooled TIG welding torch with a 35 Dinse (1/2" OD) adapter for power/current supply and a 9mm quick connect/disconnect gas fitting.

Nothing makes TIG welding easier than a high-quality TIG torch with a flexible cable. Our air-cooled torches feature a one piece cable design constructed from an extremely flexible, silicon rubber hose with a nylon, braided weave overlay. The cables even stay flexible in cold weather; the cable design puts much less strain on your wrist and makes the torch feel lighter.

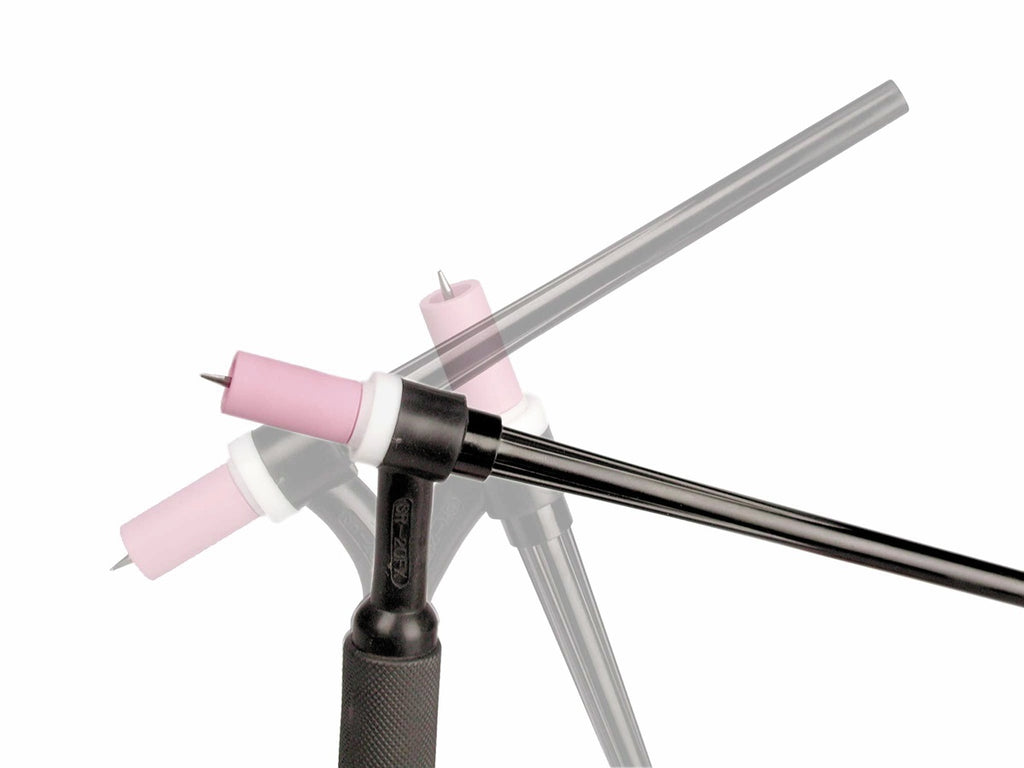

Available with a standard rigid neck, a flex neck, or a swivel head and in 12.5' and 25' lengths. Includes a long back cap and a heat shield. Collets, collet bodies, alumina cups, and tungsten sold separately.

For consumables, please visit the following links:

17 Series Air-Cooled Alumina Short Consumables
17 Series Air-Cooled Alumina Standard Consumables
17 Series Air-Cooled Gas Lens Consumables
17 Series Air-Cooled Pyrex Large Diameter Consumables
17 Series Air-Cooled Pyrex Short Consumables
17 Series Air-Cooled Pyrex Standard Consumables

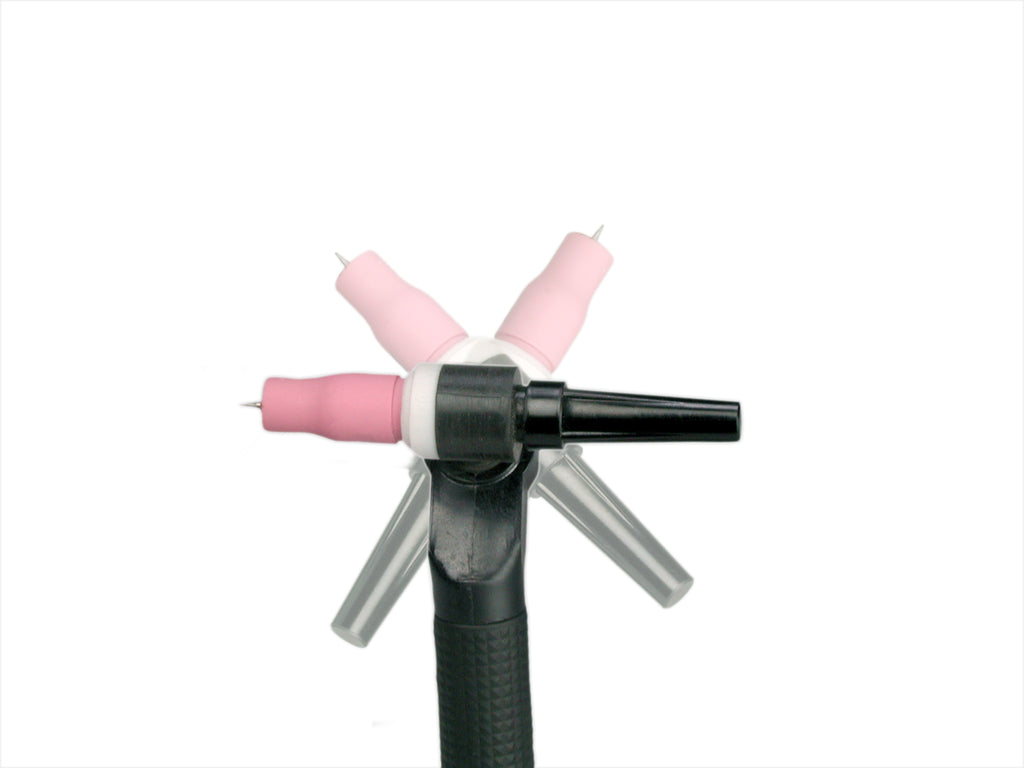

Note regarding swivel head TIG torches: If you do not tighten your swivel head torch head enough, the loose connection can cause overheating and arcing. Arc damage and melting at the brass surfaces underneath the adjustment stem and swivel head, as well as those on the torch body, can occur. If those surfaces are compromised, the body, head, and adjustment stem will all need replacement.

Recommended tightening procedure:

1. Position the torch head 90º counter-clockwise from the desired position.
2. Tighten the adjustment stem by hand until snug.
3. Turn the torch head* 90º clockwise until firmly tight.
*Do not use the adjustment stem for the final tightening of the torch head to the torch body, only use the torch head to do so.

CA Prop 65 - For Residents of California
Warning: Welding and cutting equipment, accessories, and fumes can expose you to chemicals, including Chromium (Hexavalent Compounds), Lead, and Nickel, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Customer Reviews
5.0 Based on 5 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Dean S.
United States

Perfect replacement for AHP AlphaTIG 201XD

This replaces the original stock hose/cable on AHP’s TIG welder. The original’s hose was made of rubber which decomposed and cracked in just a couple of years. This hose is reportedly made of a silicone rubber which should have a much longer lifespan.

Clinton B.
United States United States

good to go

Great torch and everything plugged in seamlessly to my everlast, Really cool that I didn't have to do any plumbing.

Erick C.
United States United States

Perfect Replacement

My previous gas hose had cracked and was leaking, this solved that problem and works perfectly.

Dylan F.
United States United States

Works great

Does what it is supposed too.

Ross D.
United States United States


Can’t go wrong with the CK products, I now own three of their torches and all are first rate. USA Weld did great getting them shipped out in quick order.
